Label Finishing: SDF-E

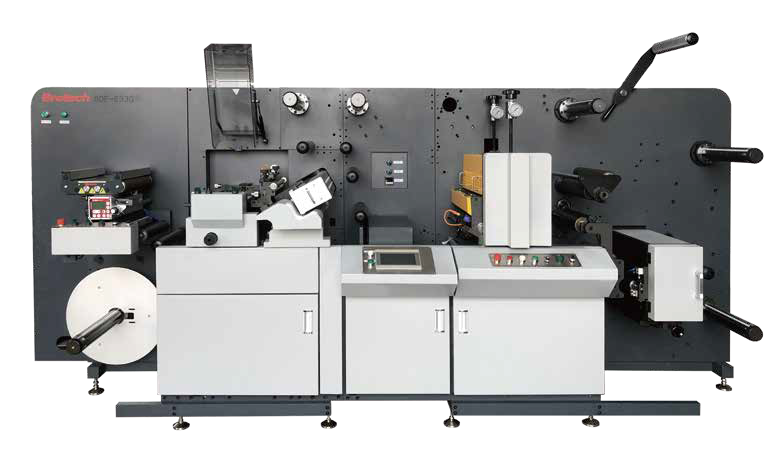

SDF-E Digital Label Finishing System
The SDF-E series features a modular design, delivering a cost-effective and highly versatile solution for modern label finishing. The platform can be fully configured and expanded with a wide range of optional modules, enabling users to optimize productivity and adapt to evolving application requirements. Available options include additional flexo stations for coating and printing, as well as integrated cold foil and lamination processes in a single pass. Further enhancements such as hot air (IR) drying for water-based primers or inks, automatic slitting, sheeting, and IML stacking significantly broaden the application range.
Key Features
- Fully automated, servo-driven flexo unit for flexo printing, cold foil application, lamination, varnishing, and super varnish
- UV/LED-UV curing system with integrated chill roller for stable web tension and consistent temperature control at all speeds
- Servo-driven die-cutting unit with automatic registration system
- Seamless switching between full-rotary and semi-rotary die-cutting modes
- Ideal for short to medium runs, particularly for digitally printed labels
- Optional hot air (IR) drying system for water-based applications
- Configurable with automatic slitting and IML stacking integration
Designed with a compact footprint and a short web path, the SDF-E series minimizes material waste while ensuring outstanding precision in both cutting and registration.
Technical Specifications
- Working widths:
- 330 mm (web width 340 mm)
- 420 mm (web width 430 mm)
- Flexo & die-cutting:
- Combined semi-rotary and full-rotary flexo
- Combined semi-rotary and full-rotary die-cutting
- Max. unwind diameter: 700 mm
- Rewind system: Dual shaft (2 × 600 mm)
- Max. mechanical speed:
- Semi-rotary: 70 m/min
- Full-rotary: 130 m/min
- Repeat lengths:
- Semi-rotary: 30–80% of cylinder
- Max. semi-rotary repeat: 457 mm
- Registration tolerance: ± 0.15 mm
- Substrate range:
- 35–280 µm
- Self-adhesive, film, paper &, light board
