Label Finishing: SSD330-3X Plotter

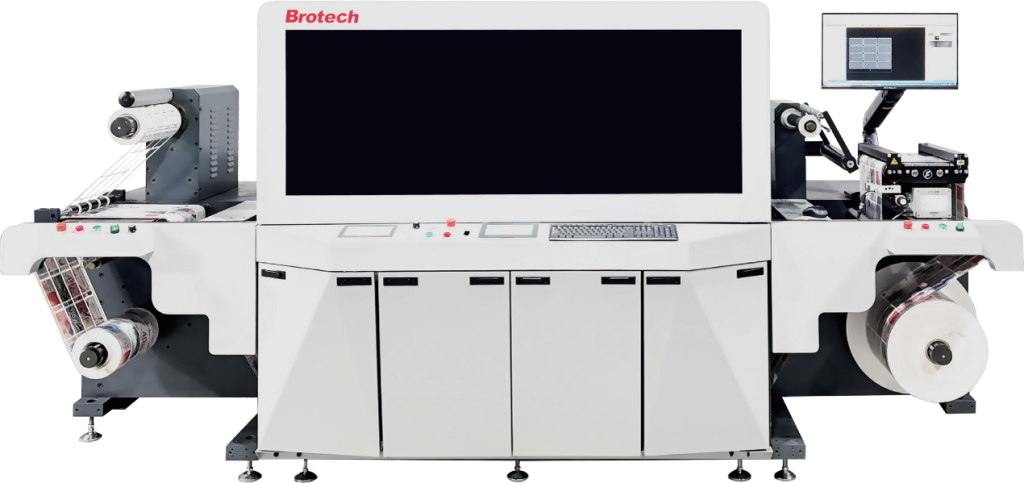

The Brotech SDD330-X3 Digital Label Cutting System is a newly developed, plotter-style, digital die-cutting solution with 3 stations. Each station has 4 micro-knife cutting tools, designed to provide maximum flexibility and productivity. Compared with traditional rotary die-cutting systems, it offers greater flexibility and is ideally suited for short production runs and customized orders.
The SDD330 integrates dry laminating, digital die-cutting, slitting, and sheeting into a single, compact system, streamlining the production process while reducing setup time.
Features
- Instant job changeover, ideal for short runs and urgent orders.
- Automatic QR code scanning for fast and efficient job setup.
- Compact footprint compared to conventional digital die-cutting machines.
- Servo-driven cutting heads for easy and accurate operation.
- The knives are made from military-grade steel with extended lifespan.
- Remote monitoring support for rapid troubleshooting and resolution.
Technical Specifications – SDD330-3X
| Max. web width | 330 mm |
| Max. die cutting width | 320 mm |
| Max. unwind diameter | 600 mm |
| Max. rewind diameter | 600 mm |
| Min. cutting width per label | 10 mm |
| Max. cutting width per label | 320 mm |
| Digital cutting repeat length | 30-645 mm |
| Min. width between two blades | 50 mm |
| Min. slitting width | 10 mm |
| Die cutting tolerance | ± 0.15 mm |
| Max. line speed | 35 m/min* |
| Detection mark | Square, Dot, QR-code, Bar-code etc. |
| Supported formats | HPGL、DXF、AI、PDF、CF2 |
| Machine weight | 3T |
| Power Consumption | 15 kW |
*Production speeds depend on various conditions, including substrate and design
Video:
Note the design-change in the video below;
Changing from 5-lane to 4-lane, automatically adjusted by QR-code reading.
